New kind of 3D printing makes use of sound waves to construct up objects

3D printing sometimes entails depositing layers of molten plastic, laser-melting powdered steel, or utilizing UV mild to harden gelatinous resin. A brand new method takes yet one more strategy, nevertheless, by using sound waves.

Developed by a workforce of scientists at Canada’s Concordia College, the expertise is named direct sound printing (DSP).

Within the present model of the method, a transducer is used to ship targeted pulses of ultrasound by the edges of a chamber, into liquid polydimethylsiloxane (PDMS) resin contained inside. Doing so produces ultrasonic fields, which trigger quickly oscillating microscopic bubbles to quickly kind at particular factors within the resin.

As these bubbles oscillate, the temperature inside them rises to about 15,000 levels Kelvin (14,727 ºC or 26,540 ºF) and the strain inside them climbs to over 1,000 bar (14,504 psi). Though this sudden improve in temperature and strain solely lasts for picoseconds (trillionths of a second), it causes the resin to solidify on the actual location of the bubble.

Subsequently, by incrementally shifting the transducer alongside a predetermined path, it is potential to construct up an intricate three-dimensional object – one tiny pixel at a time. Together with its capability to provide very small, detailed objects, DSP additionally permits constructions to be non-invasively printed inside different constructions which have opaque surfaces.

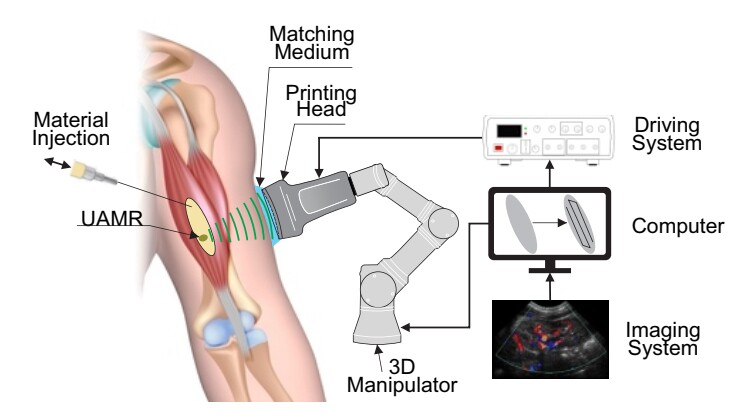

A diagram illustrates how DSP might be used to print a construction inside a affected person’s arm

Concordia College

For example, using the method, plane mechanics might conceivably 3D-print repairs onto inner elements, with out opening the aircraft’s fuselage. It is even potential that implants might be 3D printed inside a affected person’s physique, with out the necessity for surgical procedure.

Apart from the PDMS resin, the scientists have additionally efficiently used DSP to print objects manufactured from ceramic materials. They now plan on experimenting with polymer-metal composites, adopted by pure steel.

“Ultrasonic frequencies are already being utilized in harmful procedures like laser ablation of tissues and tumours,” mentioned Prof. Muthukumaran Packirisamy, who led the examine together with Dr. Mohsen Habibi and PhD pupil Shervin Foroughi. “We needed to make use of them to create one thing.”

A paper on the analysis was not too long ago printed within the journal Nature Communications. The method is demonstrated within the video beneath.

Utilizing sound for 3D printing

Supply: Concordia College
